| Part No. |
LS108G |
| Brand |
TP-link |
| Standards and Protocols |
IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
| Interface |
8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity |
Fanless |
| External Power Supply |
External Power Adapter (Output: 9VDC / 0.6A) |
| LED Indicator |
System Power |
| Link/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) |
6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm) |
| Max Power Consumption |
3.7W(220V/50Hz) |
| Max Heat Dissipation |
12.617 Btu/hr |
| PERFORMANCE |
|
| Packet Forwarding Rate |
11.9 Mpps |
| MAC Address Table |
4K |
| Packet Buffer Memory |
1.5 Mb |
| Jumbo Frame |
16 KB |
| SOFTWARE FEATURES |
|
| Advanced Features |

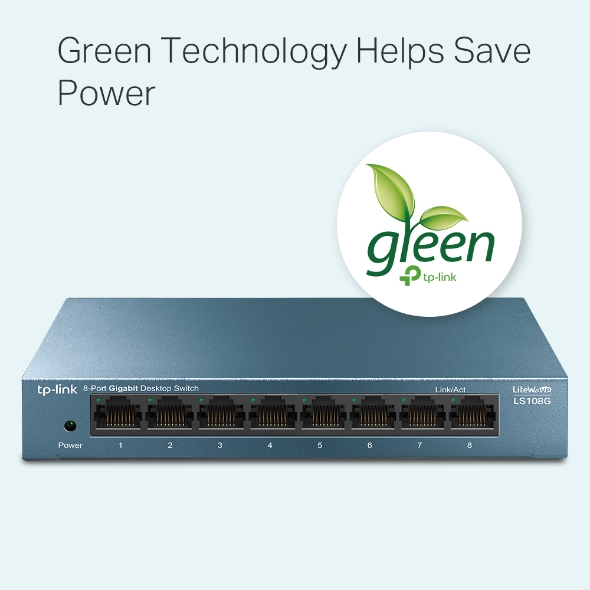

Green Technology |
| 802.3X Flow Control |
| 802.1P/DSCP QoS |
| Transfer Method |
Store and Forward |
| OTHERS |
|
| Certification |
CE, FCC, RoHS |
| Package Contents |

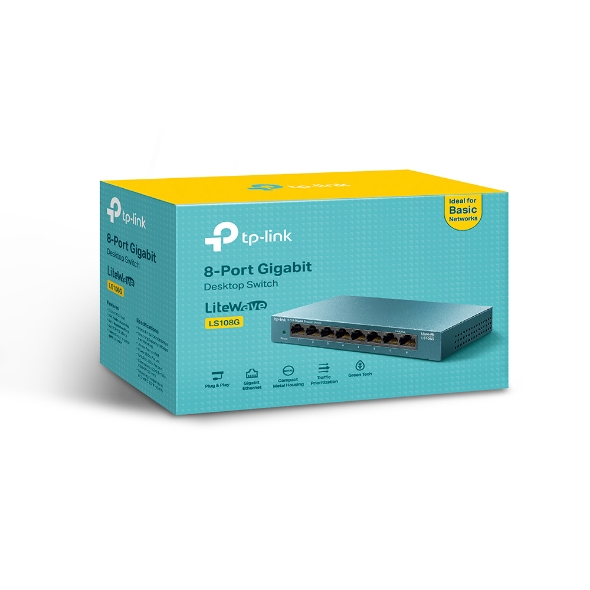

8-Port 10/100/1000Mbps Desktop Switch |
| Power Adapter |
| Installation Guide |
| Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) |
| Storage Temperature: -40°C~70°C (-40°F~158°F) |
| Operating Humidity: 10% ~ 90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
