| Model name |

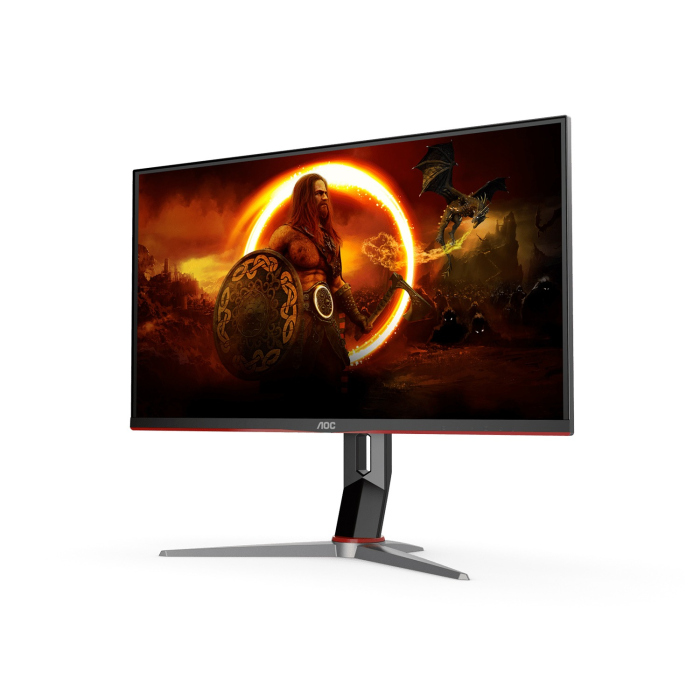

U28G2X/D/89 |
| Panel |
28″ (IPS LCD) |
| Pixel Pitch (mm) |
0.16 (H) x 0.16 (V) |
| Effective Viewing Area (mm) |
620.9 (H) x 341.28 (V) |
| Brightness (typical) |
300 cd/m² |
| Contrast Ratio |
1000 : 1 (Typical) |
| Response Time |
1ms |
| Viewing Angle |
178° (H) / 178° (V) (CR > 10) |
| Color Gamut |
NTSC 108% (CIE1976) / sRGB 122% (CIE1931) / DCI-P3 93% (CIE1976) |
| Color Accuracy |
– |
| Optimum Resolution |
3840 x 2160 @ 144Hz – DisplayPort1.4 3840 x 2160 @ 60Hz – HDMI2.0 |
| Display Colors |
16.7 Million |
| Signal Input |
HDMI 2.0 x 2 DisplayPort 1.4 x 2 |
| HDCP Version |
HDMI: 2.2, DisplayPort: 2.2 |
| USB Hub |
no |
| Power Supply |
100 – 240V ~ 1.5A, 50 / 60Hz |
| Power Consumption (typical) |
45W |
| Speakers |
no |
| Line in & Earphone |
– |
| Wall-Mount |
100mm x 100mm |
| Adjustable Stand |

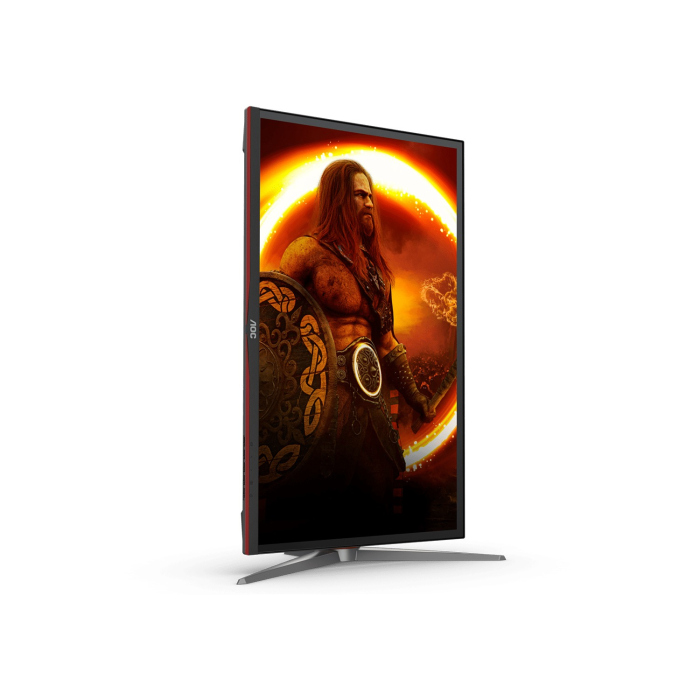

Height: 130mm, Pivot: 0°~90° ± 2°, Swivel: -30° ~30°, Tilt: -5° ~ 23° |
| Product without Stand (mm) |
368.5 (H) x 636.4 (W) x 53.0 (D) |
| Product with Stand (mm) |
401.9~531.9 (H) x 636.4 (W) x 227.4 (D) |
| Product without Stand (kg) |
4.81 |
| Product with Stand (kg) |
6.15 |
| Cabinet Color |
Black & Red |
| Regulatory Approvals |
RCM / MEPS / CE / CB / FCC |
|
*U28G2X has been upgraded to AMD Freesync Premium version since September.20.2021 (manufactured date) |
